Waterproof Dome Fiber Optic Splice Closure/Joint Closure

Place of Origin : Shenzhen,China

Brand Name : GT-Link

Certification : ISO,CE,RoHS,GGS

Model Number : GT-D001

Connector Type : Dome

Length : 435mm×190mm

Type : 5 pieces in general

Manufacturer : yes

OEM : YES

Dimension (cm) : aerial, underground, pipeline, handhole

Ambient temperature : -40℃ to +65℃

Capacity of FOSC : 12-24cores

Weight (excluding outside box) : 2350 g— 2600g

Max diameter Of cable(mm) : Φ8mm～Φ25 mm

MOQ : 50pcs

Price : USD0.1~5.0/PCS

Packaging Details : PP bag,carton box

Delivery Time : about 7 days once confirmed

Payment Terms : T/T,CASH,Western Union etc.

Supply Ability : 2000pcs/day

Shiping Port : Shenzhen

Contact Now

Waterproof Dome Fiber Optic Splice Closure/Joint Closure

1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (Height x Diameter) 435mm×190mm
Weight (excluding outside box) 2350 g— 2600g
Number of inlet/out ports 5 pieces in general
Diameter of fiber cable Φ8mm～Φ25 mm
Capacity of FOSC Bunchy: 12-96 (cores), Ribbon: up to 288 (cores)

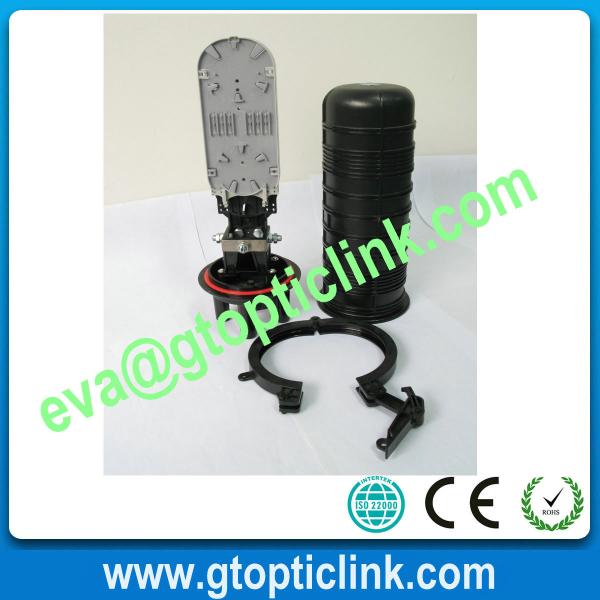

2.2 Main components
No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece
Protecting fiber cable splices in whole
Height x Diameter
355mm x 150mm
2 Fiber optic splice tray (FOST)
Max. 6 trays (bunchy)
Max. 4 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Fiber holding tray
1 pcs
Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set
Fixing between FOSC cover and base
6 Seal fitting 1 piece
Sealing between FOSC cover and base
7
Pressure testing valve
 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per requirement
8
Earthing deriving device
 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per requirement
2.3 Main accessories and special tools
No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Protecting fiber splices
Configuration as per capacity
2 Nylon tie
Fixing fiber with protective coat
Configuration as per capacity
3 Heat shrinkable fixing sleeve (single) Fixing and sealing single fiber cable
Configuration as per requirement
4 Heat shrinkable fixing sleeve (mass) Fixing and sealing mass of fiber cable
Configuration as per requirement
5 Branching clip Branching fiber cables
Configuration as per requirement
6 Earthing wire 1 piece Putting through between earthing devices
7 Desiccant
1 bag
 Put into FOSC before sealing for desiccating air
8 Labeling paper 1 piece Labeling fibers
9 Special wrench 1 piece Tightening nut of reinforced core
10 Metal hoop 1 set For wall mounting and pole hugging
11
Buffer tube
decided by customers
 Hitched to fibers and fixed with FOST, managing buffer. Configuration as per requirement
12 Aluminum-foil paper
1 piece
 Protect the bottom of FOSC
